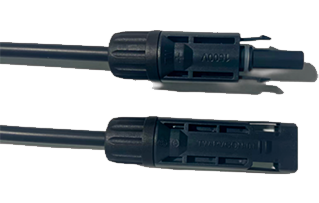

产品描述
类别名称Type designation | TW-PVCON-01 | ||
额定电压Rated voltage | 1500V DC | 绝缘材料Insulation material | PV40Z |
额定电流 Rated current | 40A | 阻燃等级 Flame class | UL94-V0 |
环境温度范围 Ambient temperature range | -40℃ ~ +85 ℃ | 线缆规格Cable specifications | 1*4mm² |
防护等级Degree of protection | IP68 | 安全等级 Safety class | Ⅱ |
接触材料Contact material | T2 镀锡 T2-Sn | 火焰等级 Flame class | 5VB |
